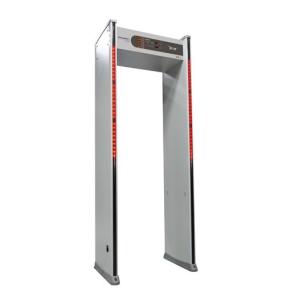

Walk-through Metal Detector

Model No.: AJ-033S

• Weatherproof design (Aluminum Case)
• Inner size as 76cm width ( Less false alarm and better for big body passengers)
• Automatically Calibration
• Detect zone: 33 zones
• Updated DSP technology, offers high sensitivity, immunity to false alarms, discrimination, uniform detection a bigger breakeven for the products

Technical Specification

· Electric current: 80V to 250V

· Power: 8W

· Work temperature: -20℃~+70℃

· Storage temperature:-30℃~+70℃

·Humidity: 0 to 95%

· Gross Weight: 80kg

· Outer frame: 2210mm (h) x 880mm (w) X 600mm (d)

· Inner frame: 2010mm (h) X 760mm (w) X 600mm (d)

Specification

· High sensitivity, accurate alarm

· Self-diagnostic procedures

· Tell the problem in words

· DSP Digital processing technology

· 10 hours Input MBSU battery backup, in time power transfer.(optional)

· 300 sensitivity level adjustable

· Friendly LCD operate interface, local language support.

· Modular structure to easy after service

· Available 100 operate frequency, enable max 100pcs WTMD work side by side.

· Auto Scan environmental interference at site.

· Automatically adapt to the working environment.

· Good performance in anti-interference ability.

· Sound and light alarm

· 20 program

· Calculate traffic flow and resultant alarms

· Tamper-Proof: operate program is protected by password.

· With Remote controller

· Tamper-Proof: key lock and three level of access codes

☆ Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.

☆ Tamper-Proof: operate program is protected by password.

· Control panel – for indication of the detected zone in alarm

· Traffic management – number of persons that passed through, number of alarms and the percentage

· Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources

· Harmless to pregnant woman and heart pacemaker medical devices or devices with electromagnetic storage ( CCTV Systems, notebooks etc.)

· Command to other device like barrier, turnstile, etc (Optional)

· 4000～8000 adjustable operating frequency and multiple channels

Standard:

• In accordance with: EN60950, WN50081-1, And EN50082-1
• CE Certificate; ISO 9001:2008 Certificate, National standard

Anji is a company engaged in providing the solutions to the public safety, the complete production and integration services. The company was established in May 2012, has many famous enterprises and governmental agencies at home and abroad to establish a long-term friendly business relationship.

We have gained rich experience after providing safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, airport and so on.
Categories of Products:
X-Rray Baggage Inspection System
Security Metal detectors ( Gate and handle type)h
Under Vehicle Surveillance System
GSM Alarm System

AND SO ON…
